6226-187-00.625

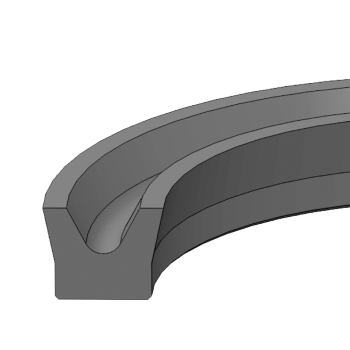

6226 Homogeneous U-Cup, 5/8 X 1 X 3/16
Part #:
6226-187-00.625
Min. Order Qty: 1
Brand: HPSI
HPSI
6247 U-Cups are precision molded from Buna-N synthetic rubber. These u-cup part numbers are listed according to the inside diameter with a dash number (where applicable) called out by the Army-Navy specification.
| Cross Section | : | 3/16 in |
| Height | : | 3/16 in |
| Inside Diameter | : | 5/8 in |
| Material | : | 70A Buna-N Rubber |
| Outside Diameter | : | 1 in |
| Part Number | : | (Prefix)-(C/S)-(ID) |
| Pressure Range | : | 0 TO 500 PSI |
| Temperature Range | : | -40° to 240°F |
- 6226 style
- Air cups
- Symmetrical U-seal
- 70A Buna-N Rubber
- -48
