MPSD-140X119X8.1
MPSD 2pc Piston Seal, 140 X 119.0 X 8.1
Part #:
MPSD-140X119X8.1
Min. Order Qty: 1
Brand: HPSI
HPSI

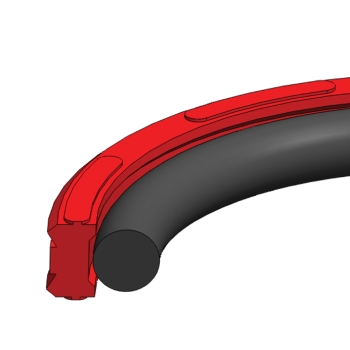

The MPSD piston seal is a double-acting seal engineered for high performance and durability. It features two compact sealing edges that concentrate load on the dynamic surface, a central cavity to retain fluid for reduced friction and wear, and side grooves that allow pressure to engage the energizer under all working conditions. With excellent wear resistance, high resistance to extrusion, and reliable sealing performance even at low pressures, the MPSD seal delivers efficient and long-lasting operation.
| Bore Diameter | : | 140 mm |
| Groove Diameter | : | 119.0 mm |
| Groove Width | : | 8.1 mm |
| Material | : | Urethane/Nitrile |
| Part Number | : | (Prefix)-(Bore Dia)X(Groove Dia)X(Groove W) |
| Pressure Range | : | 0 TO 5,800 PSI |
| Temperature Range | : | -22° to 210°F |
- MPSD style
- 2pc metric piston seal
- 97A urethane seal
- 70A nitrile loader
