O-RING CHART
O-Ring Size Identification Chart
Part #:
O-RING CHART
Min. Order Qty: 1
Brand: HPSI
HPSI

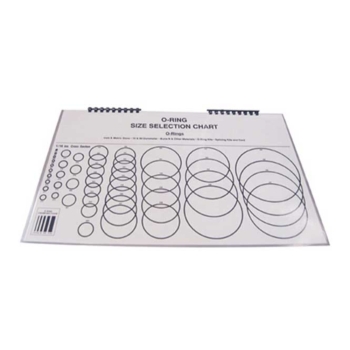

This O-Ring Size Chart is a convenient reference tool for identifying standard O-ring sizes by dash number and cross-section. Ideal for quick selection and verification during assembly, repair, or inventory tasks.
| Size Range | : | 1/16" C/S": 003-047; 3/32" C/S: 108-163; 1/8" C/S: 202-258; 3/16" C/S: 325-357; 1/4" C/S: 425-440; Boss Tube Fittings: 901-932 |
| System of Measurement | : | Inch |
- Lists O-ring dash numbers with corresponding cross-sections
- Streamlines O-ring identification and replacement
- Durable for shop or field use
- Saves time during hydraulic and pneumatic maintenance
