PIP187-03.000

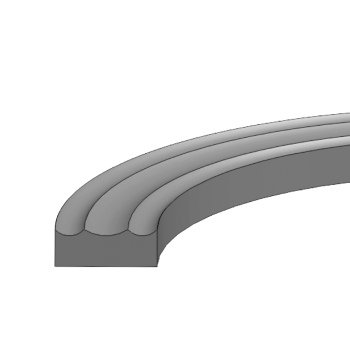

95A Lubrithane PIP Ring, 3 X 3-3/8 X .109
Part #:
PIP187-03.000
Min. Order Qty: 1
Brand: HPSI
HPSI
Used as a companion to our "B" lip configured Poly-O U-Seal, PIP rings convert a unidirectional u-seal into a bidirectional seal. Note: height dimension is the increase in groove width required.
| Cross Section | : | 3/16 in |
| Height | : | .109 in |
| Inside Diameter | : | 3 in |
| Material | : | 95A Lubrithane |
| Outside Diameter | : | 3-3/8 in |
| Part Number | : | (Prefix)(C/S)-(ID) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -65° to 220°F |
- PIP Ring
- Converts unidirectional to bidirectional
- O-ring loaded poly back-up
- 95A Lubrithane
