HPSI

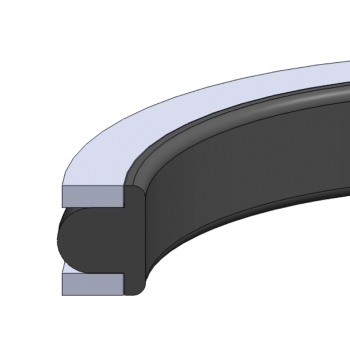

These wider base T-Seals are designed to replace standard O-rings and backups in MIL-5514F glands only. The intermediate base (designated "-1") retrofits a 1 O-ring / 1 back-up gland while the wide base (designated "-2") retrofits a 1 O-ring / 2 back-up gland
| Bore Diameter | : | 3 in |
| Groove Width | : | .424 in |
| Material | : | Nitrile/Nylon |
| Part Number | : | (Prefix)-(O-Ring Size)-(1/2) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -35° to 250°F |
- TP style
- Wide base
- Bidirectional pressure applications
- Nitrile seal
- Nylon back-ups
